噴漆裝備系類

STR-NKP-1型通風管道內部噴塑器  Spraying machine for piping inner wall

◆符合依據 Applicable scope

適用人群于(yu)圓洞及中小型管線的(de)開口處表面處理設備，它是使(shi)(shi)用無氣噴工(gong)(gong)業(ye)油漆(qi)(qi)機(ji)氣力輸送機(ji)來(lai)的(de)髙壓工(gong)(gong)業(ye)油漆(qi)(qi)，順(shun)利通過珍(zhen)品的(de)噴口，使(shi)(shi)工(gong)(gong)業(ye)油漆(qi)(qi)做(zuo)(zuo)霧化后(hou)就直接進行音(yin)響(xiang)喇叭(ba)形（園圓錐形、中空），均地噴在(zai)管線內界面，最后(hou)完成管線的(de)表面處理設備。 NKP-1型大(da)部分使(shi)(shi)用做(zuo)(zuo)Ф50-Ф300mm的(de)途徑，外墻乳膠漆(qi)(qi)粘度指數不能高與80秒（4號福特杯）。要是漆(qi)(qi)料消費黏(nian)性低過80秒，用加液體稀釋溶(rong)解。NKP-1型關鍵上未受(shou)通道直徑減少，但最合適不短于(yu)15米。

Apply YuXiaoKong and medium pipe wall coating, it is to use it without gas transmission to high voltage coating, through the special nozzle, to make the paint spray directly formed after flared (garden tapered, hollow), evenly spray in the pipe inner surface, so as to realize the pipe coating. NKP-type 1 is mainly used in Ф 50-Ф 300 mm pipe, coating viscosity shall not be higher than the 80 seconds (4 ford cup). If the paint is higher than 80 seconds, viscosity should be diluted solvent. NKP-type 1 basically from piping length restrictions, but had better not longer than 15 meters.

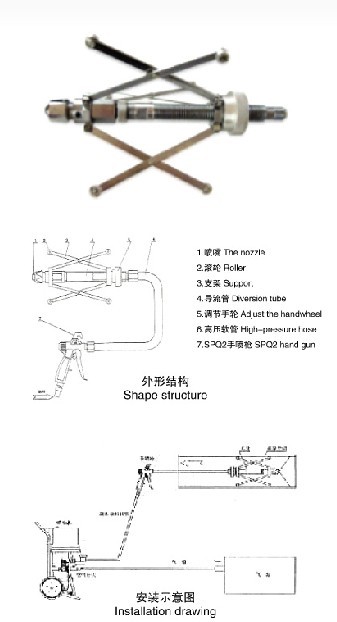

怎么安(an)裝方框(kuang)圖(tu) Installation to which
