◆車輛作用 Product features
1. 設計(ji)先(xian)進,外觀美(mei)觀性,優質質量好(hao)好(hao);
2. 調(diao)節式颶風剝離 器,能將可以選擇耐磨材料與(yu)小(xiao)煤塵(chen)剝離 ,好的耐磨材料立即的使用;
3. 重點零(ling)部分選取(qu)好的(de)進口量(liang)工件,適用(yong)壽命長(chang);
4. 加工處(chu)理產品表(biao)層更(geng)加均勻;
5. 多工位器具定制;實際操作方法者可還實際操作方法噴砂。給出朋友各種需求,可選擇擇手動式或一鍵 ;可按顧客追求訂做!
1. Novel design , beautiful shape, good environmental protection effect;
2. Adjustable cyclone separator, can be used with tiny dust separation, good abrasive continue to use;
3. The main components uses the high quality import parts, long service life;
4. Machining surface evenly;
5. Program design; An operator can also operate sandblasting. we can choose manual or automatic according to customer needs.
◆實用的范圍 Applicable scope
石材,PC電腦設備殼(ke),影響板材,面包烤盤(pan)等水平線及方體零(ling)部件的噴砂生產制造。
Plate, the computer case, music panels, sandwich baking dish wait for plane and workpiece of sandblasting processing.
◆主要的科技參數表 Main technical parameters
|
刷卡(ka)機應用(yong) Model |

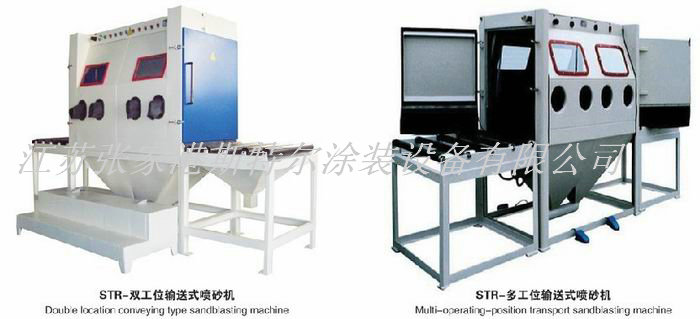

STR-多工位輸送式噴砂機 |
|
機(ji)床長寬 Complete machine size(mm) |
3000×1000×1700 |
|
運作環境空(kong)間 Work space(mm) |
2000×1000×800 |
|
外運送長度 Conveying the size(mm) |
500×1000×1000(2件(jian)) |
|
煙氣凈化箱長寬比 Dedust box sizes(mm) |
600×600×1800 |
|
區分器(qi)三相異步電機 Separator motor |
220V 50HZ 550W |
|
離心(xin)分(fen)離設備(bei)排風量 Separator air volume |
8.5m3/min |
|
減小廢氣(qi)源 Compressed air source |
2-8bar(kg/cm2) |
|
噴槍 Spray gun |
2把 |
|
照明 Floodlight |
兩盞30W防(fang)爆設備燈 |
|
器(qi)機載重量 Machine weight |
550kg |
