◆企業產品特質 Product features(請往(wang)上面搜索有大量量裝修案例(li)照片頭像提供下參考(kao)選取)

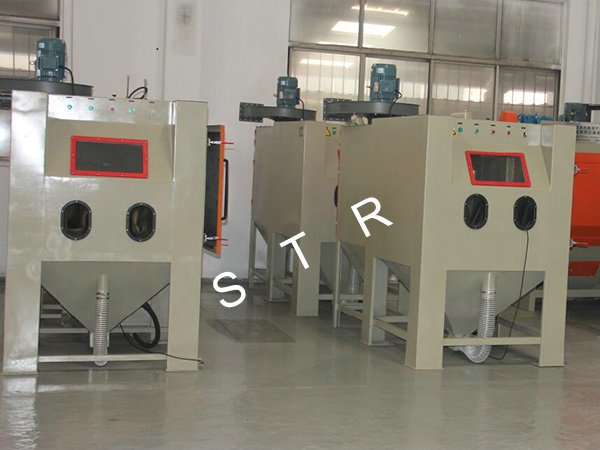

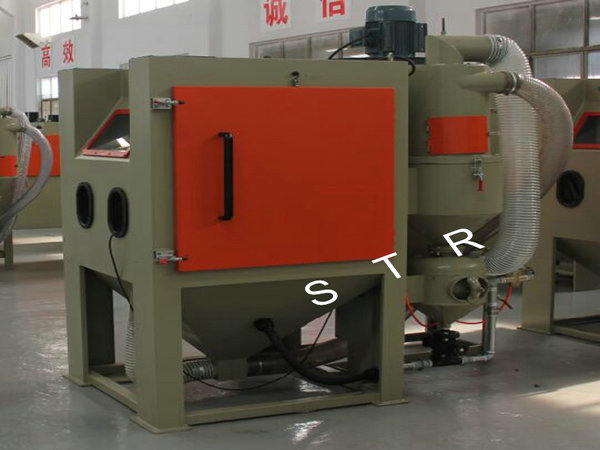

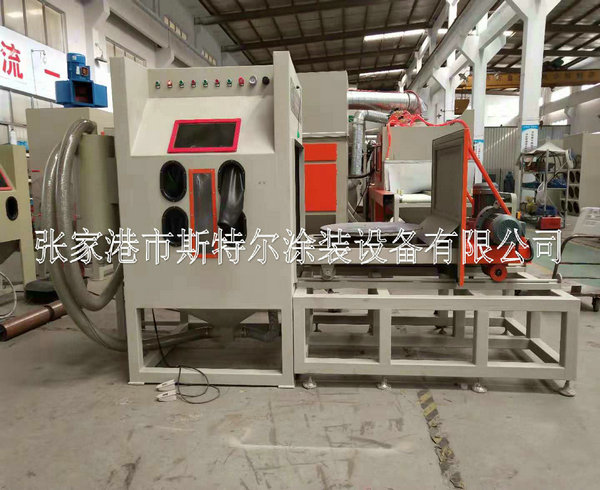

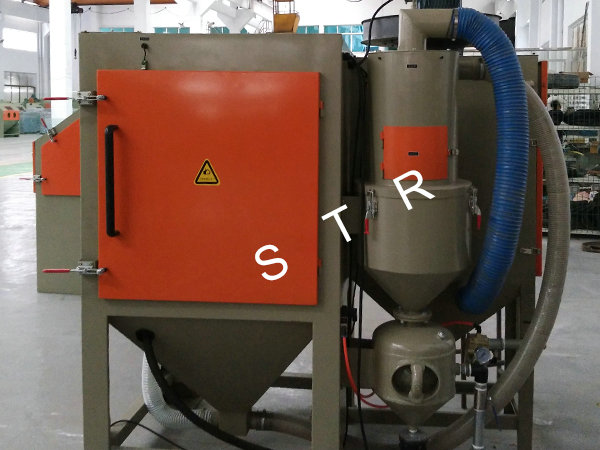

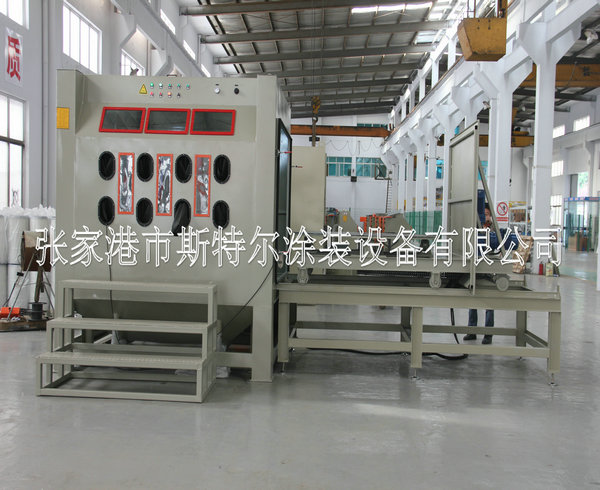

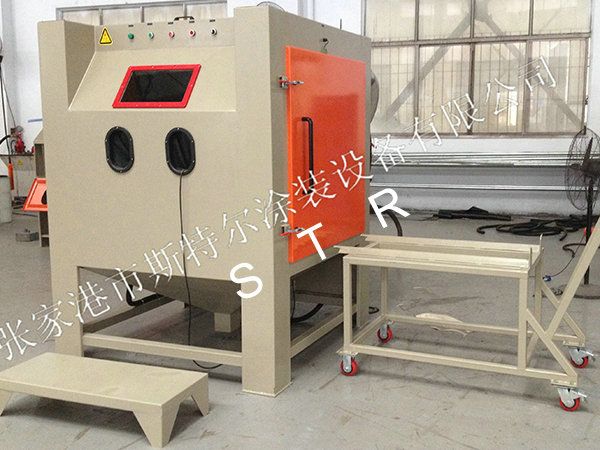

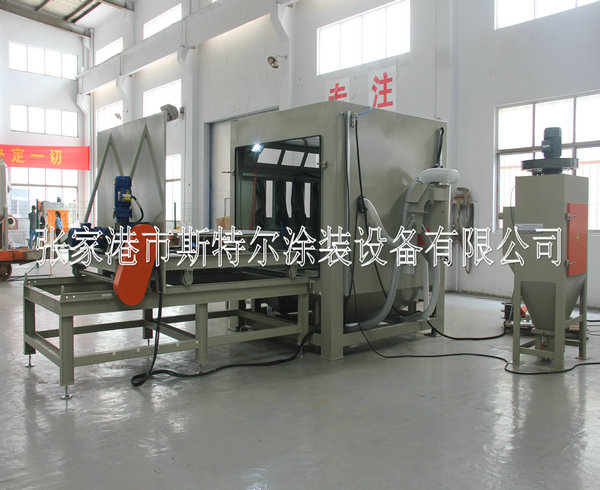

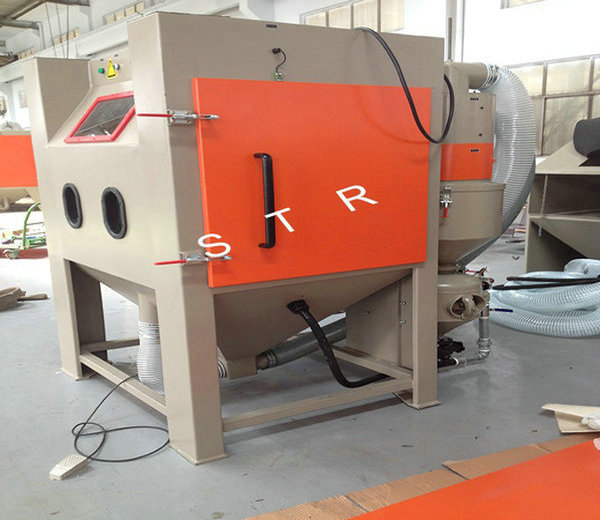

噴砂機主要用于電鍍、噴漆、噴涂等所有被覆蓋加工前噴砂處理;舊樣翻新清洗;金屬制品及塑膠、水晶、玻璃等表面痕跡消除,啞光霧面處理,使產品表面提升檔次;機加工零件微小毛刺去除;增加金屬件表面硬度,消除應力如彈簧、機加工刀具等;金屬制品及非金屬制品表面刻蝕圖案、文字及防滑處理,如大理石、印章、手柄防滑等。本機應用范圍:適用于大量中小型一般工件及高硬度工件的快速噴砂。如發動機配件、閥門、熱處理工件等。該機型設計新穎,結構科學合理,操作方便,加工性能優越;噴砂速度快,撞擊點深。
Features: Sandblasting machine is mainly used in electroplating, paint, coating area to-be-covered before piating; Old way of refurbished cleaning; Metal products and plastic, crystal, glass surface trace eliminate scattered, dumb, surface process to enhance the grade of the product's surface; Machining parts tiny burrs purify; Increase the metal surface hardness, eliminate stress such as spring, mechanical cutters, etc.; Metal and non-metai products surface etching pattern, writing and prevent slippery processing, such as marble, seals, and handle prevent slippery, etc. The machine is applied the range: applicable to small and medium-sized general of workpiece and high hardness workpieces quickly sandblasting. Such as engine fittings, valves, heat treatment workpiece, etc. This machine has novel, scientific design and reasonable structure, convenient operation, processing superior performance; Gush arenaceous speed, the impact point at deep.
◆可用于范圍內 Applicable scope
光電五金機(ji)械類(lei),ABS塑(su),有機(ji)板(ban),塑(su)料模(mo)。超重型(xing)零件(jian)(jian)、型(xing)式件(jian)(jian)、樹酯等零件(jian)(jian)或工藝技術(shu)品(pin)噴砂。
Applicable scope: electronic hardware class, ABS plastic, acrylic, resin, workpiece or handicraft sandblasting
◆包括工藝性能參數 Main technical parameters以此為準選取中應與業(ye)務部搞好關系(xi)
|
產品應用 Model |
STR-9070 |
STR-9080 |
STR-1010 |
STR-1212 |
|
運(yun)作艙長寬高 Internal size(mm) |
900×700×790 |
900×800×700 |
1000×1000×670 |
1180×1180×980 |
|
機(ji)器尺寸 Complete machine size(mm) |
900×700×1780 |
950×850×1720 |
1000×1000×2100 |
1200×1200×2580 |
|
收塵箱長寬 Dedust box sizes(mm) |
600×600×1680 |
600×600×1680 |
600×600×1680 |
800×800×1780 |
|
主機(ji)電源 Power |
220V 50Hz |
220V 50Hz |
220V 50Hz |
220V 50Hz |
|
機(ji)設備燈(deng)具(ju)照長明燈(deng) Machine floodlight |
220V 20W 低碳燈 |
220V 20W 低能耗燈 |
220V 20W 低能耗燈 |
220V 20W 節(jie)省燈(deng) |
|
溶合器減速機 Separator motor |
220V 50Hz 0.55-3KW |
220V 50Hz 0.55 |
220V 50Hz 0.55-3KW |
220V 50Hz 0.55-3KW |
|
破乳器新風量(liang) Separator air volume |
8.5m3/min |
8.5m3/min |
8.5m3/min |
8.5m3/min |
|
壓縮(suo)成氣氛源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
|
機械設備權重(zhong) Weight |
380kg |
380kg |
400kg |
380kg |
